Z33 350z/ G35 High misalignment Tie Rod Ends
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?

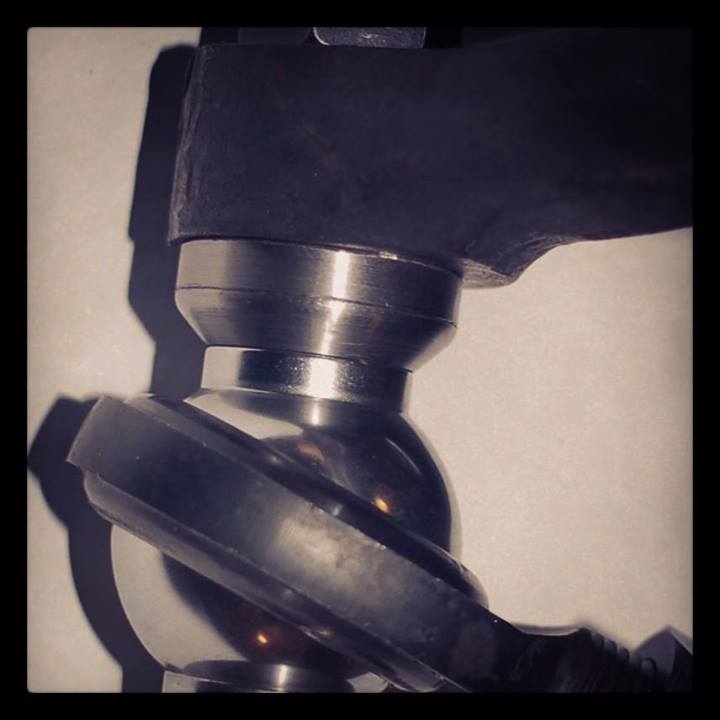

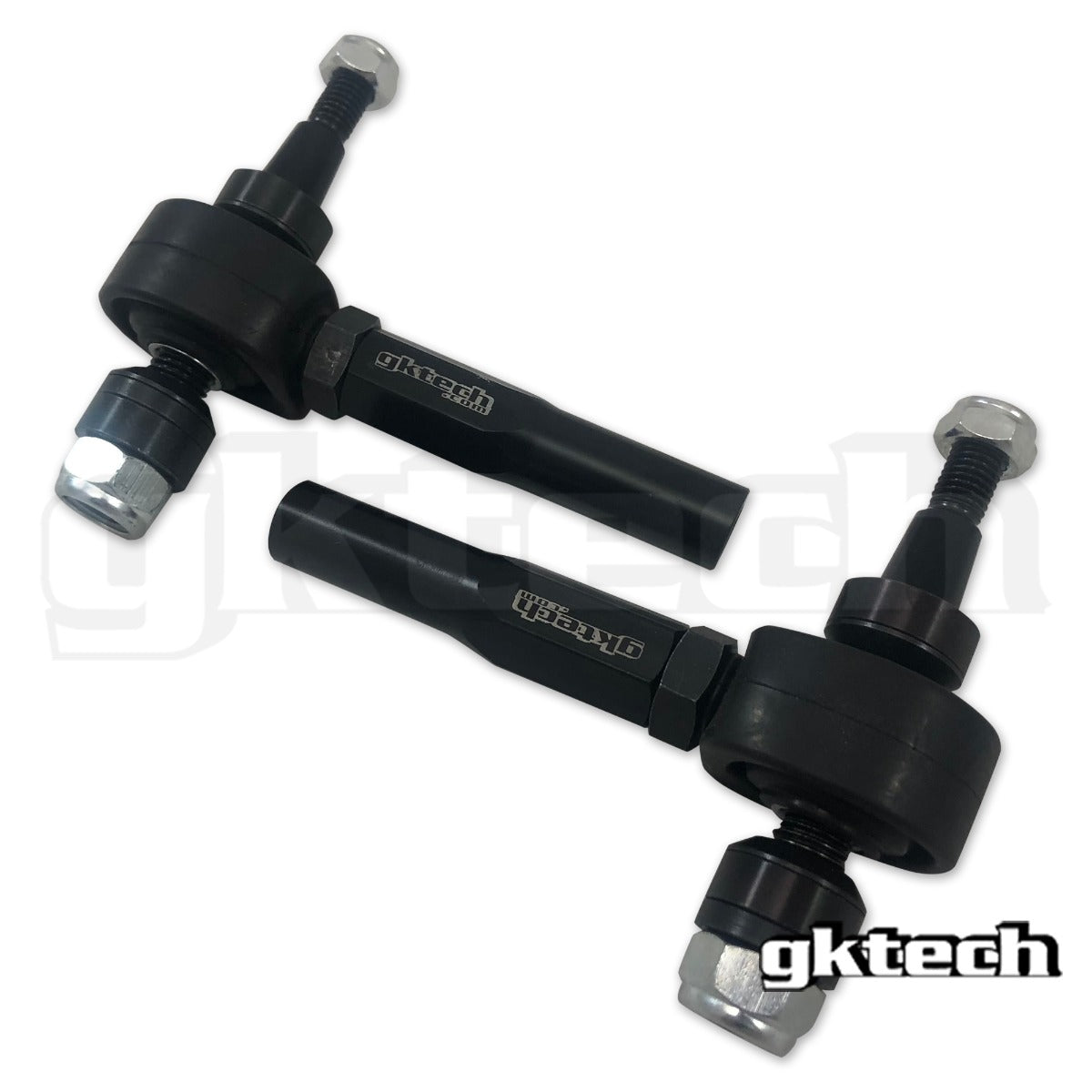

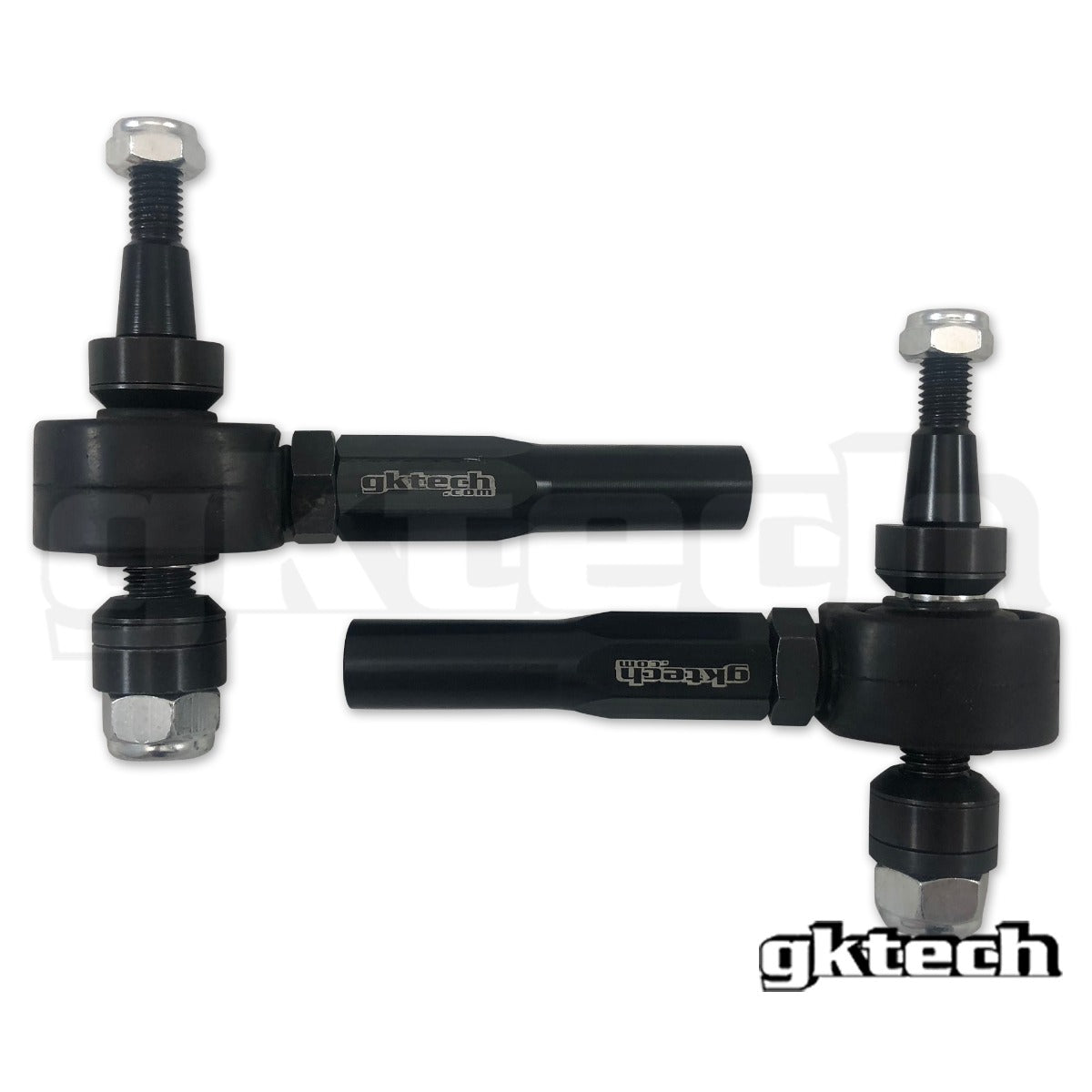

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The GKTECH high misalignment tie rods have 64 degrees of misalignment and also up to 25mm of bump steer correction built in. Although these may look pretty similar to other tie rod ends on the market, don't be fooled as they are different (in a good way). Almost all tie rod ends on the market that use rose joints are NOT using high misalignment bearings and wear out in no time at all. OEM type tie rod ends provide around 60 degrees of misalignment and it is critical that around this level of misalignment is kept.
Another common issue with most aftermarket style tie rod ends is that there is no protection from dust and dirt. We've developed dust boots specifically to suit the PCYML10T rose joints that we use in our kit. It's also pretty common for shanks to bend under high loads, our shanks have a tensile strength of 176ksi (class 12.9) Bump steer correction is altered through the use of 5mm shims.
- Corrects bump steer up to 25mm
- Uses high quality PTFE lined 1 5/8" high misalignment rose joints
- Dust boots included
FAQs
How hard are these to install?Remove your old tie rod ends and install these. It's a very self explanatory install and shouldn't take longer than 30 minutes.
Will this fit my car?
If your car is listed above then this is a straight fit.
Do I need a wheel alignment after installing these?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.
Are there any special tools required?
No, a spanner set will do the job which we do sell separately here -
DOUBLE OPEN ENDED SPANNERS
Do you carry spare parts for this product?
Yes we carry the following spare parts for this product;
Replacement Pcyml10Ts Tie Rod End Bearing -
Spare part can be found here
Tie Rod End Extenders -
Spare part can be found here
Replacement shank - Spare part can be found here
VEHICLE COMPATIBILITY
2003-2008 Z33 350z
2003-2007 V35 (G35)
Sedan
2003-2006 V35 (G35)
Note - 2007-2008 V35 (G35) SEDAN uses Z34 370z/ V36 (G37) suspension
NOTE: These tie rod ends are only to suit OEM knuckles or knuckles that use an OEM taper.
Nissan
V35 SKYLINEZ33 350Z
