Replacement PCML12TES bearing
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Choose options

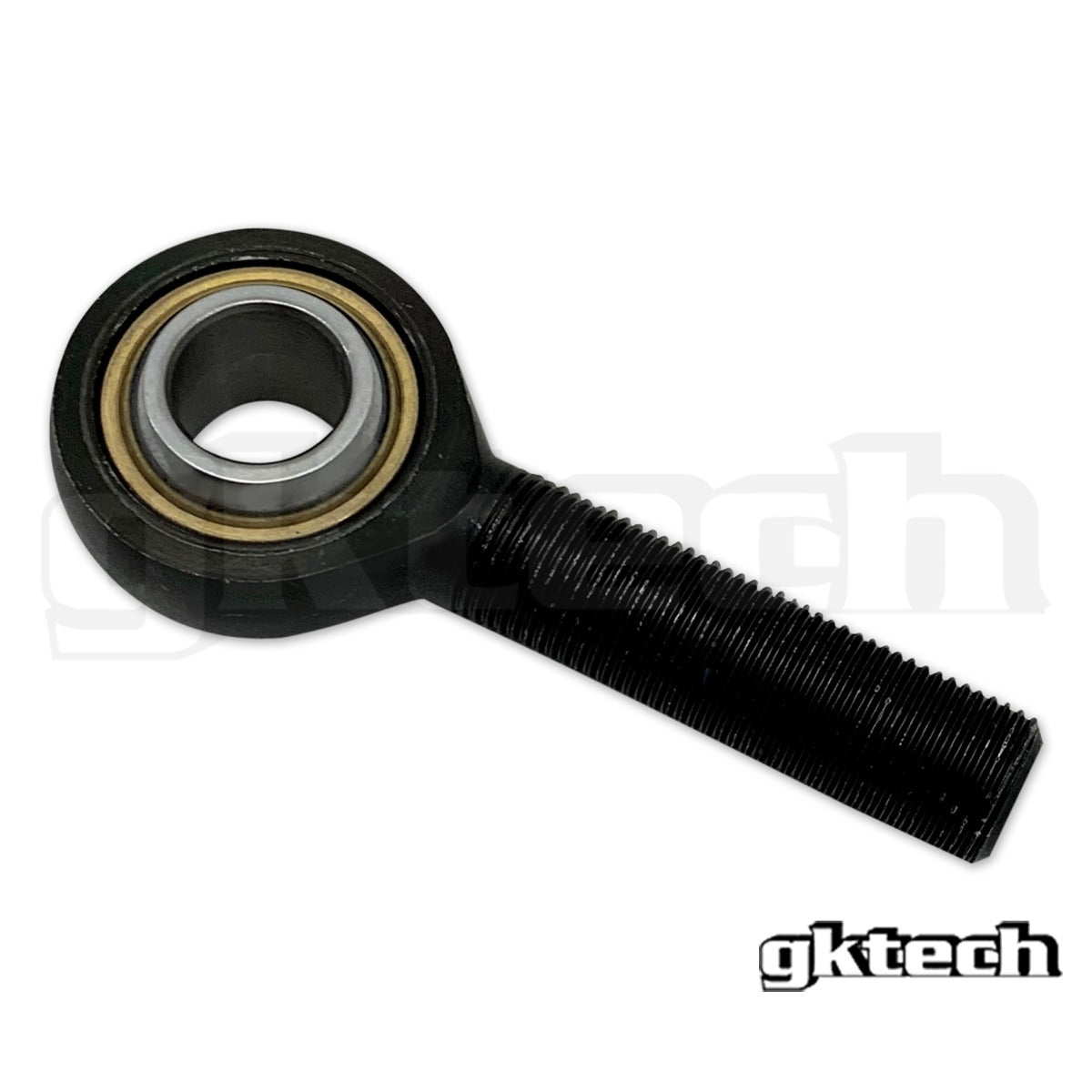

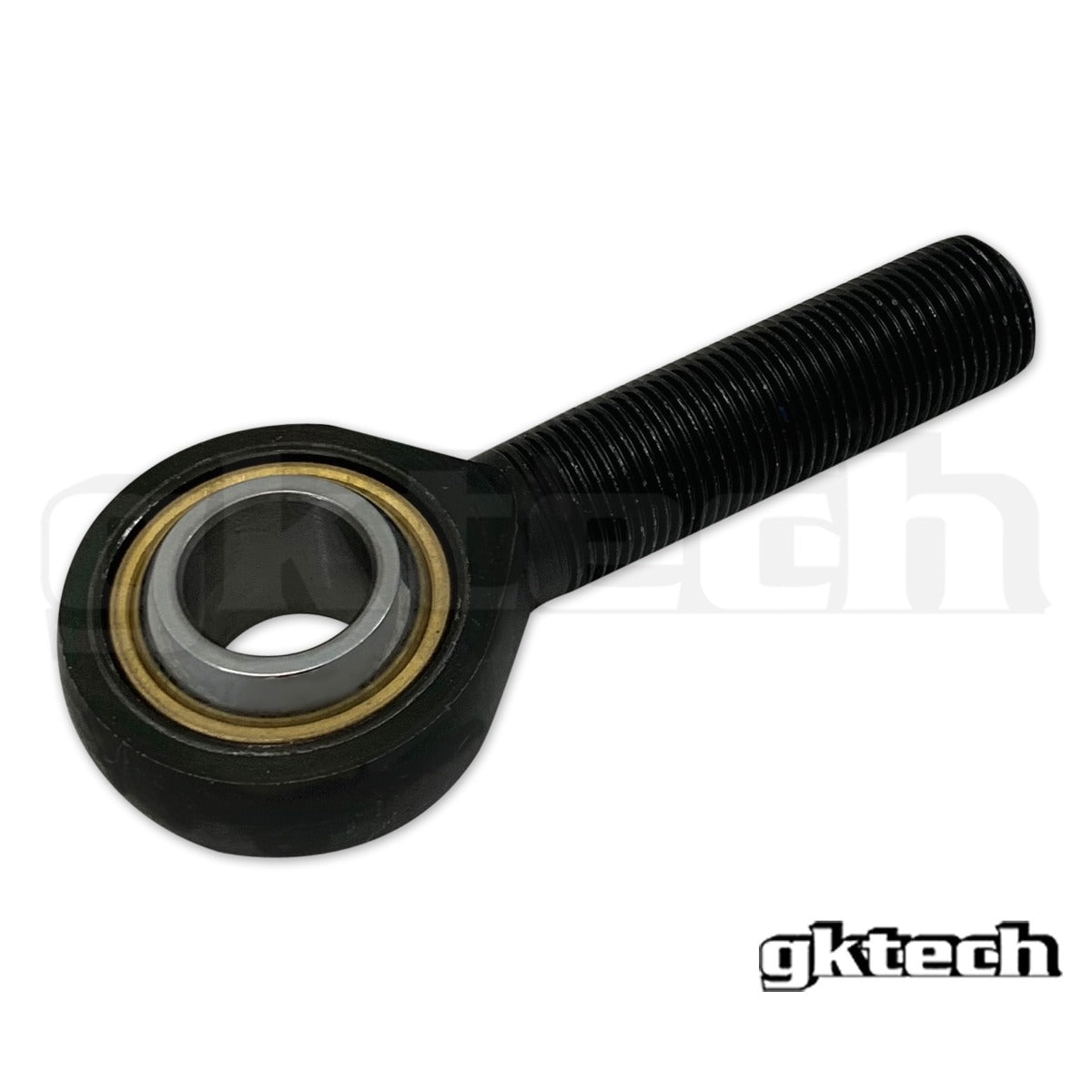

Replacement PCML12TES bearing (can also be replaced with PCML12T, non extended version and PCML12TE)
Used in the following GKTECH products:
Super Lock LCA's (SKU = S13X-944X, S13X-3974, S145-035X, S145-3065)
V3 and V4 Rear camber arms (SKU = REAR-CMBR and STRT-CMBR)
V3 and V4 Rear toe arms (SKU= S13X-TOEX and S145-TOEX)
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S14/S15/R33/R34 subframe)
R32 front upper camber arms (SKU= R32X-FUCA)
R33 front upper camber arms (SKU= R33X-FUCA)
V2 Rear LCA's (SKU=REAR-LCAX)
V2 High clearance lower control arms (SKU = BUDG-2045, BUDG-4065)
V3 and V4 Front caster rods (SKU = S13X-CSTR and S145-CSTR)
Z33/350z Front upper camber arms (SKU = Z33X-FUCA)
Z33/350z Rear camber arms (SKU = 350Z-CMBR)
Z33/350z Front super lock arms (SKU = Z33X-FLCA)
Z33/350z Toe arms (SKU=350Z-TOEX)
Z33 350Z on car adjustable front lower control arms (SKU = 350Z-FLNK)
Z34 370z/RZ34 Z Front upper camber arms (SKU = Z34X-FUCA)
(SKU = 370Z-FLCA)
F8X M2/M3/M4, G8X M3/M4 Adjustable Traction arms (pair) (SKU = FG8X-RRLR)
JZX Rear Lower Control Arms (RLCA) (SKU = JZXX-RLCA)
JZX Rear Toe Arms (SKU = JZXX-TOEX)
JZX Rear Traction Arms (SKU = JZXX-TRTN)
IS200/IS300 Rear Traction Arms (SKU = XE10-TRTN)
IS200/IS300 Rear Toe Arms (SKU = XE10-TOEX)
IS200/IS300 Adjustable Rear Lower Control Arms (RLCA) (XE10-RLCA)
PCML12TES
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.7500 in | 19.0500 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.53 in | 64.45 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF LH | 3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.8700 in | 47.4980 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTRR32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GTR
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
V35 SKYLINE
V36 SKYLINE
Z32 300ZX
Z33 350Z
Z34 370Z
