V2 S14/S15 bolt on angle kit (RCC kit)
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?

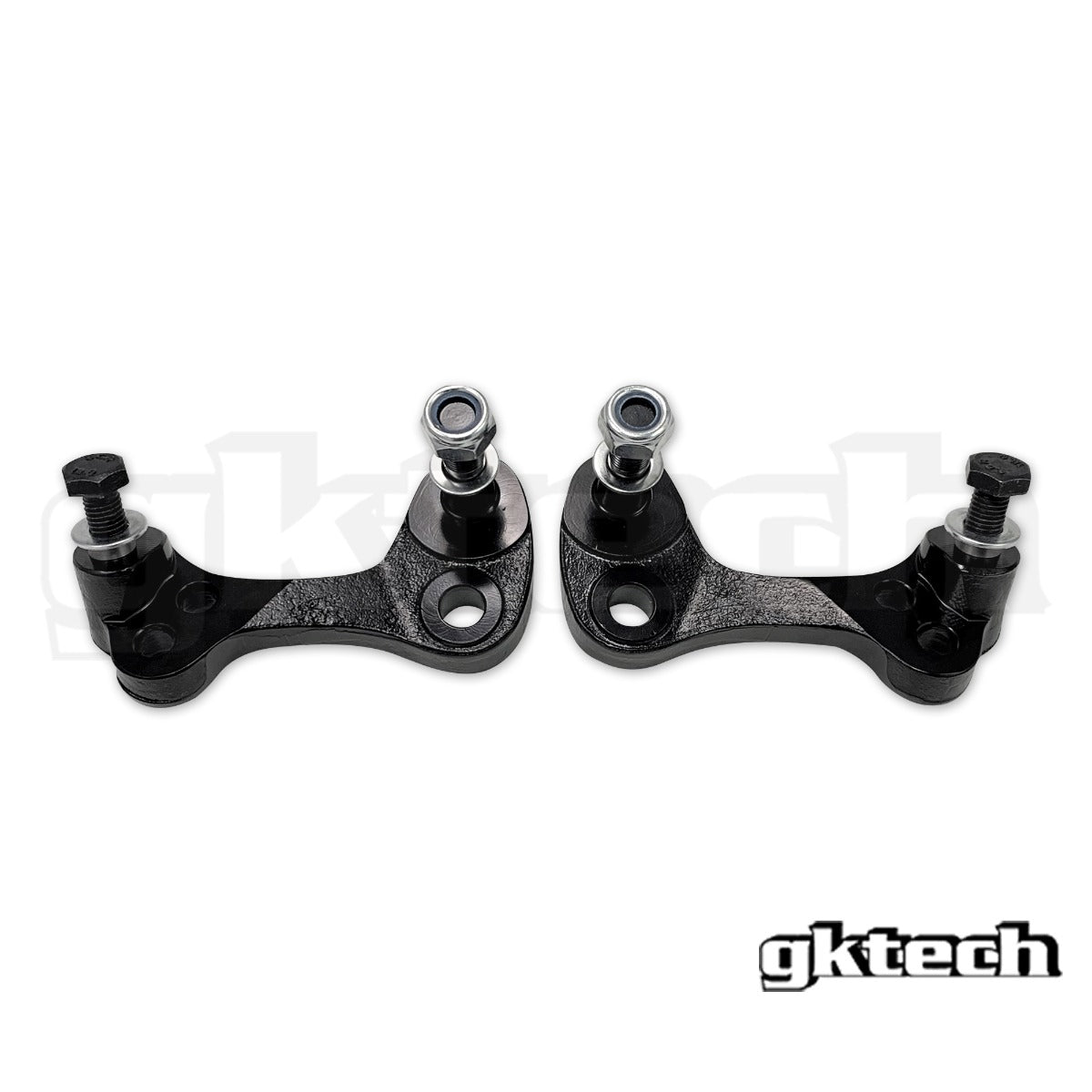

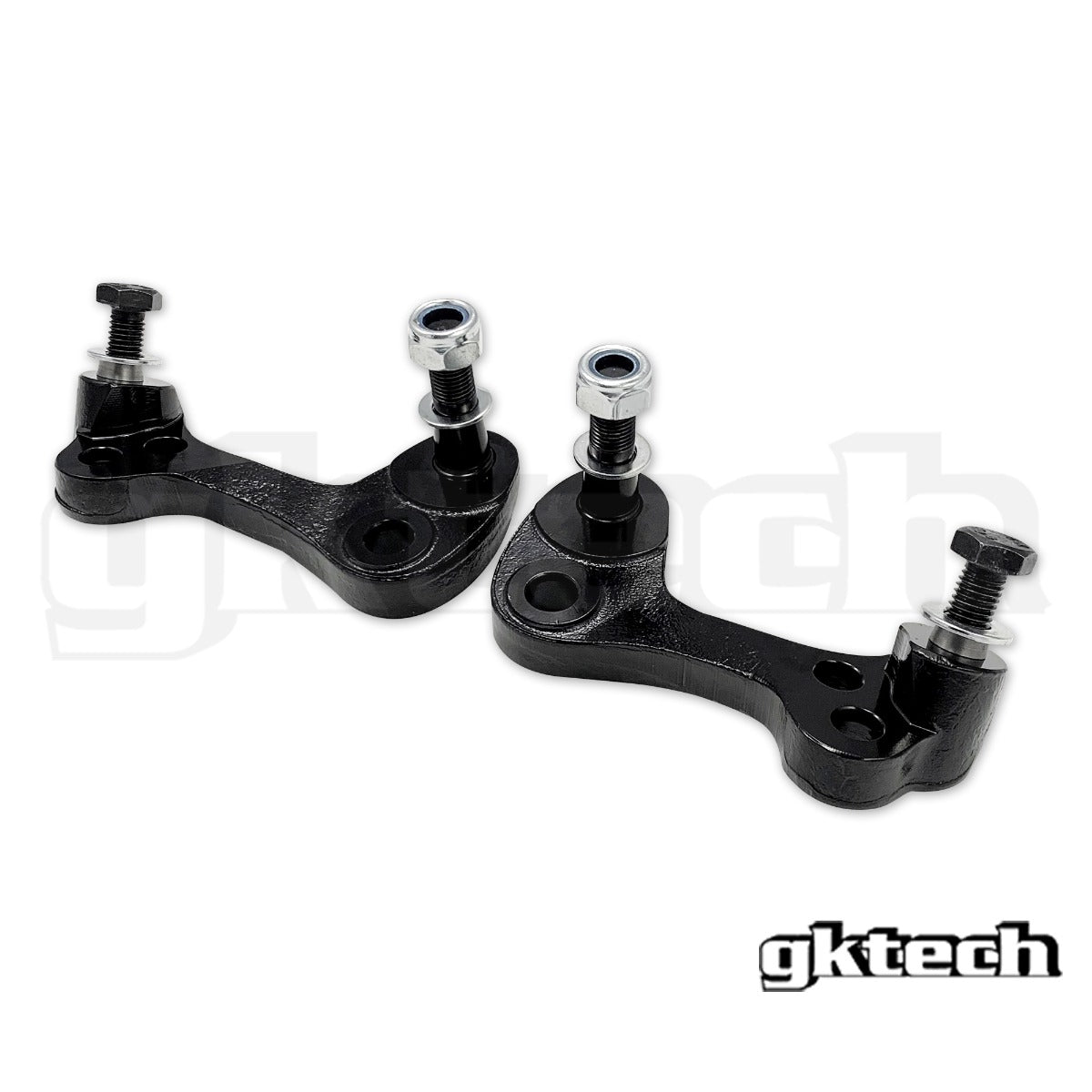

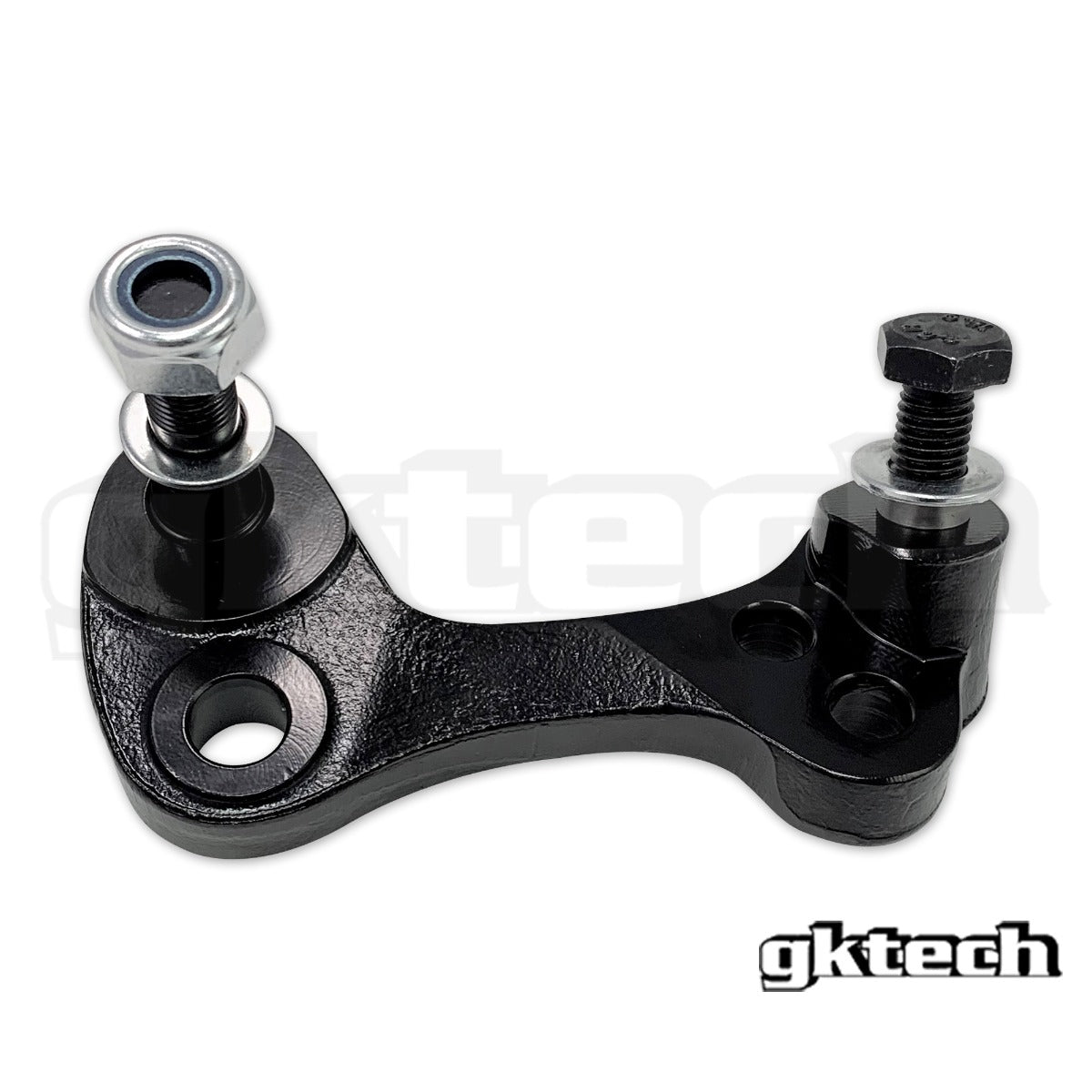

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The V2 GKTECH roll center correction kit is now made from 1030 forged steel and provides 1.57'' (40mm) of roll center correction,1.57'' (40mm) of bump steer correction and also re-positions the steering arm to increase the steering lock. With two different pickup points for the tie rod, this now offers two settings, allowing for more aggressive steering response and less Ackerman which will provide faster steering!
The roll centre correction kit bolts up to the bottom of your standard knuckle and can be removed with no ramifications at all. Circa 60+ degrees of lock is achievable without offset rack spacers once the factory LCA lock stop is removed but if you're running lots of camber or caster using our offset rack spacers is a good idea to avoid steering bind. With supporting modifications, these can see a similar lock to V4 drop knuckles!
With the introduction of our NEW price, they are by far the cheapest way of getting both roll centre correction and lock!
Want to see these in action? The following car has our RCCK, slip in rack spacers and high clearance castor arms! All other parts OEM
FAQs
Are camber tops essential? What if I have coilovers without camber adjustment?Camber tops are not essential however without them you will be running quite a bit of negative camber (-3 or more depending on the height of your car).
Does installing this kit require a wheel alignment?
Yes, it alters both your camber and toe so a wheel alignment will be required after installation.
Can this kit be used without modifying steering parts (no extenders)?
Yes it can however if you are experiencing steering bind from running lots of camber and/or caster then our offset rack spacers will help to eliminate steering bind
Are there any cons of your bolt on RC Correction kit Vs the front knuckles?
The only disadvantage to the bolt on RC correction kit is that it pushes the bottom of the ball joint out 30mm. This increases the scrub radius of your wheel 30mm (just like a bolt on wheel spacer or lower offset rim would do). If you are already running low offset rims (less than +20mm or wider than 10) then you may have clearance issues.
Which tie rod position does what?
The tie rod position that is furtherest from the balljoint is the 'Grip Position' it offers 40mm bump steer correction and 40mm roll center correction, it still increases steering lock just not as much as the other position.The tie rod position that is closest to the balljoint, still offers 40mm of bump steer correction and 40mm of roll center correction as the other position does, however is the 'Drift Position' and it offers faster steering, low ackerman and has the maximum amount of lock available with this kit.
Do you carry spare parts for this product?
Yes we carry the following spare parts for this product;
S14/S15 Roll Center Correction Kit Balljoint Shank - Spare part can be found here
Roll Center Correction Kit Tie Rod End Shank -Spare part can be found here
RC Conversion kit tie rod shank to bolt conversion - Spare part can be found here
VEHICLE COMPATIBILITY
Nissan
S14 200SX/SILVIAS15 200SX/SILVIA
Customer Reviews
Ultimate bolt-on kit for a street/track combined car
Installed on my C35 Laurel with no issues whatsoever. Completely stock suspension apart from Dmax coilovers and tension rods.
One of the threads on one of the angle kits was not completely threaded so will have to tap before I can install it other than that it is a great kit!
Hi Brady, sorry to hear. If you'd prefer we can swap it over for you.
I purchased this for a buddy, the angle kit itself is great, but he ended up rubbing his engine harness. He is definitely dropping to 17's after this, but otherwise 10/10 on this kit!
I've bought parts for my Infinity G35 and now for my S14. The price and quality are better than I'd expected, plus the delivery was fast. I'll continue buying from gktech and enjoying their great install videos!

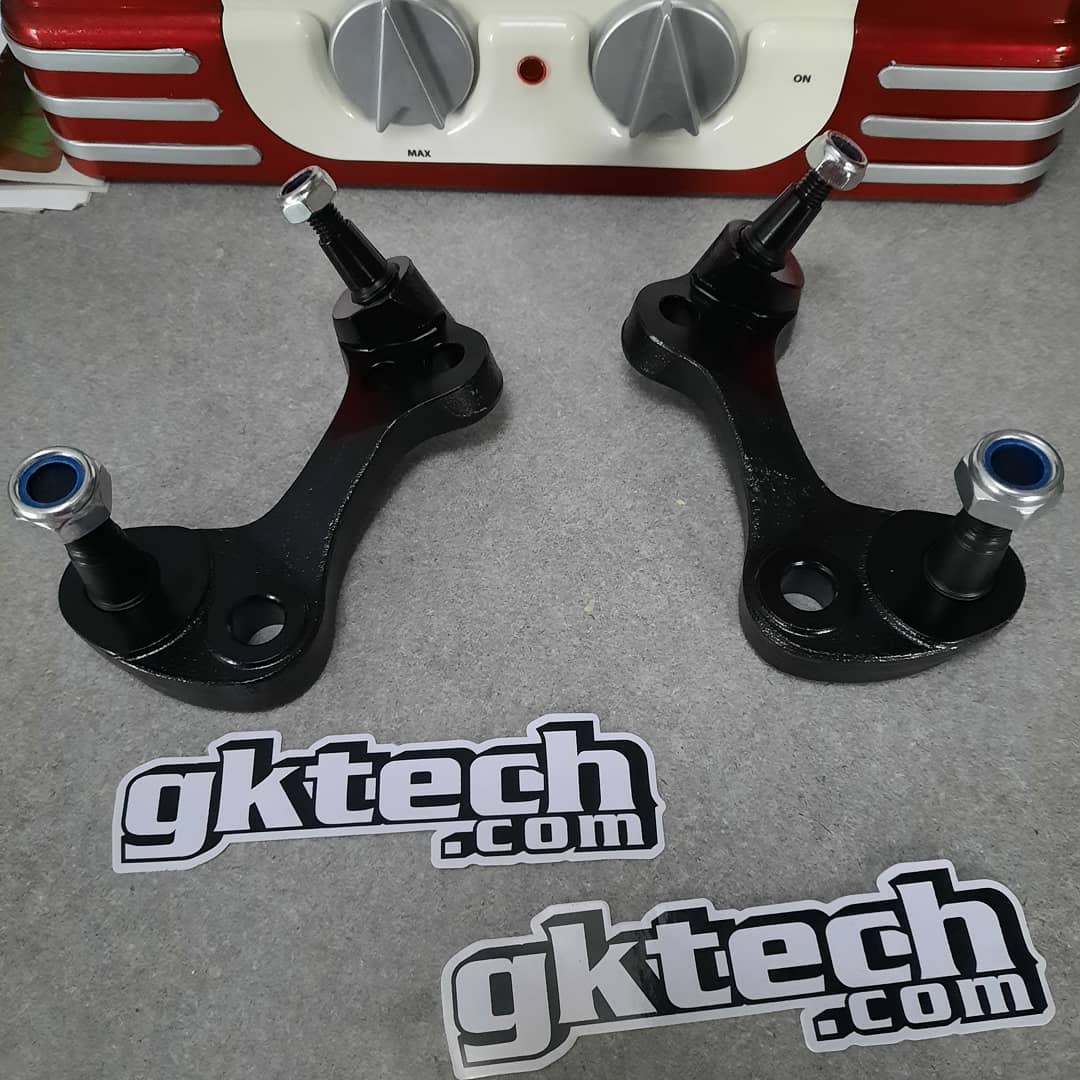

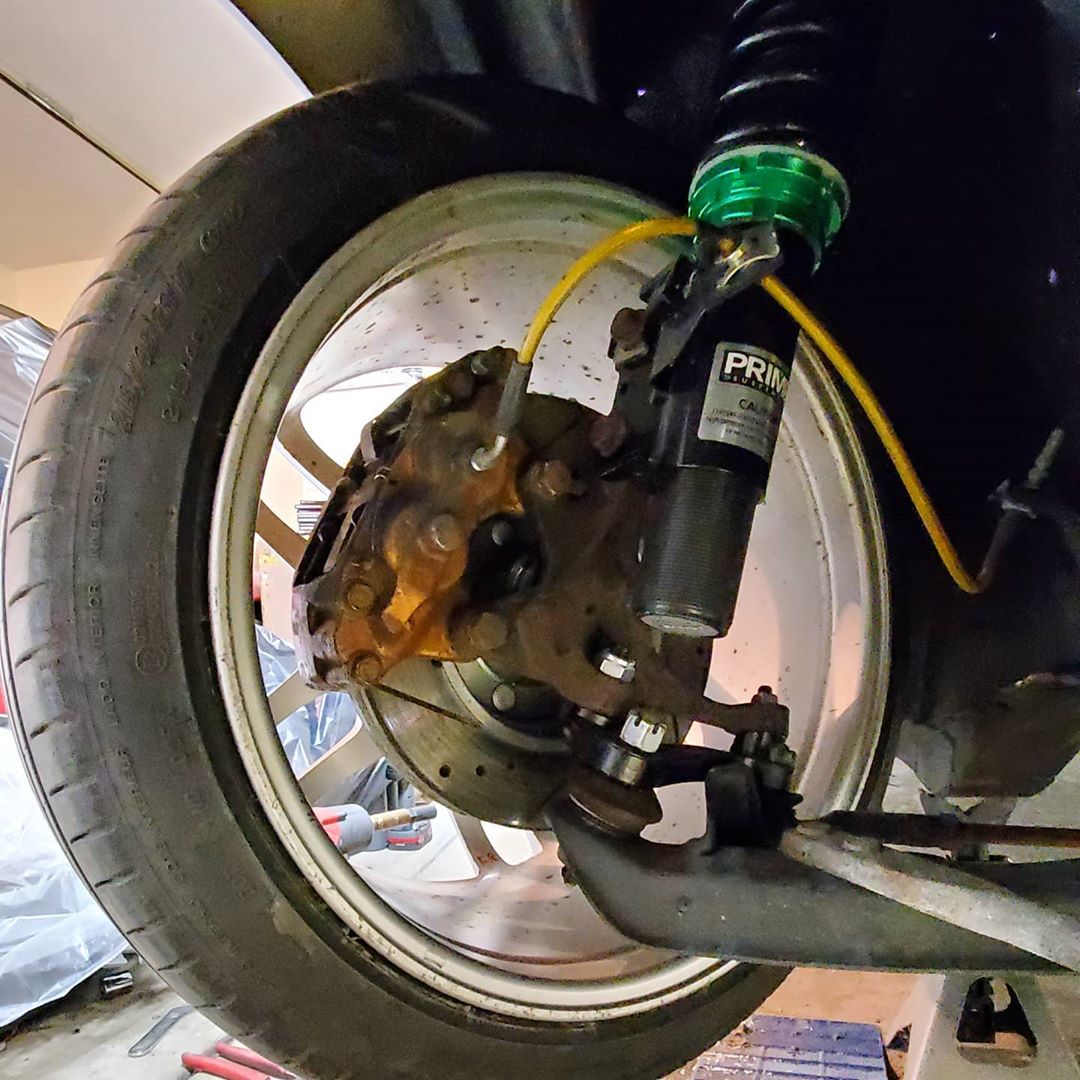

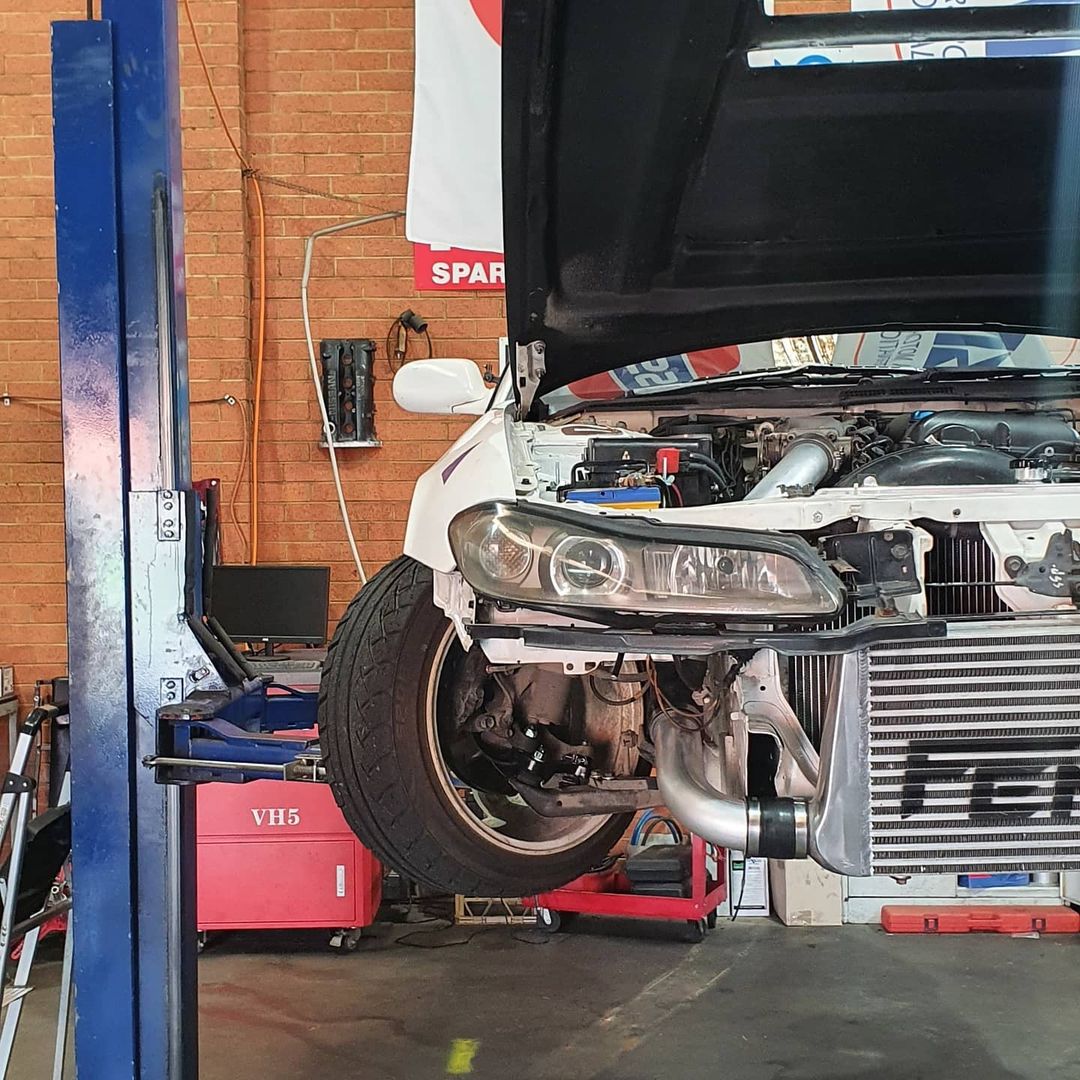

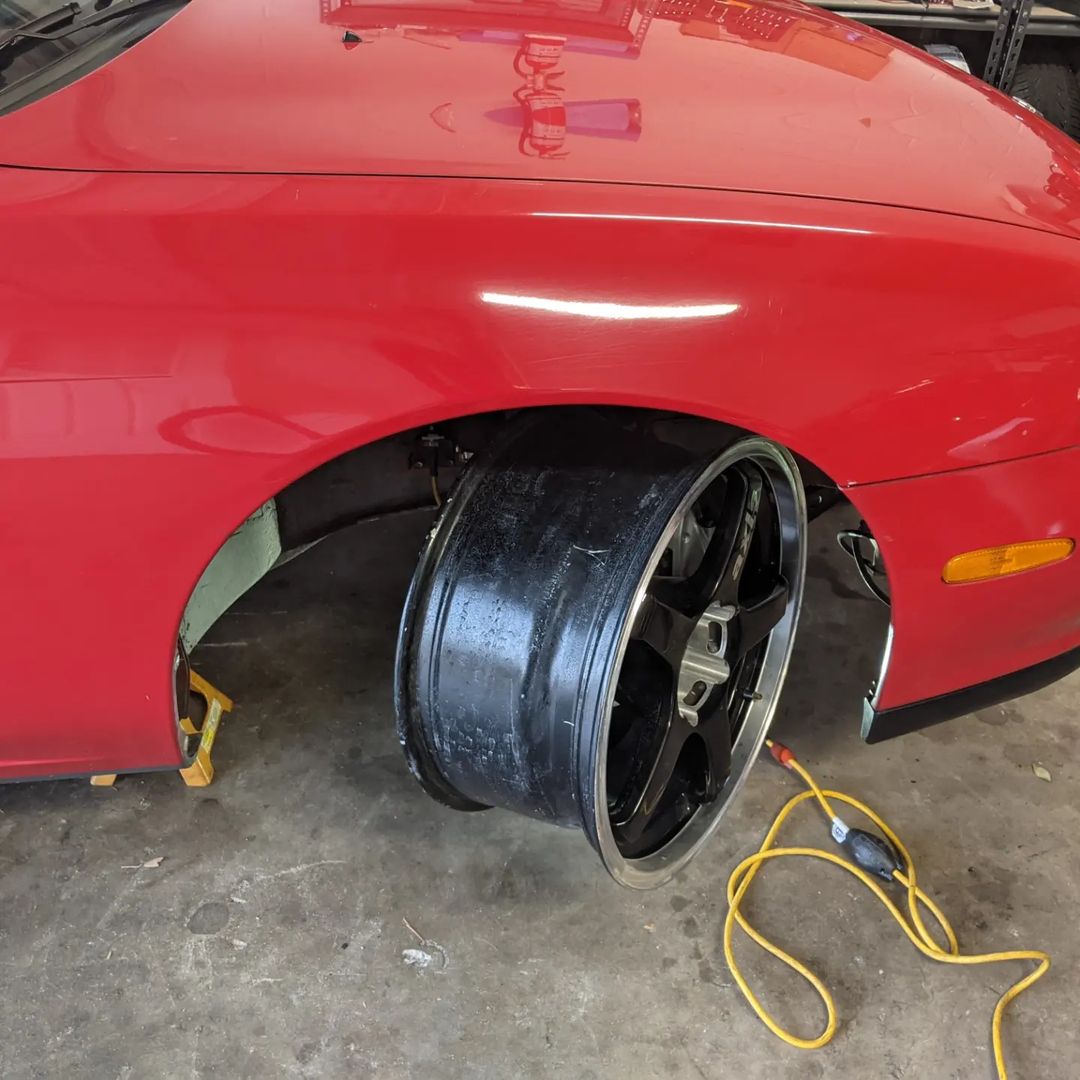

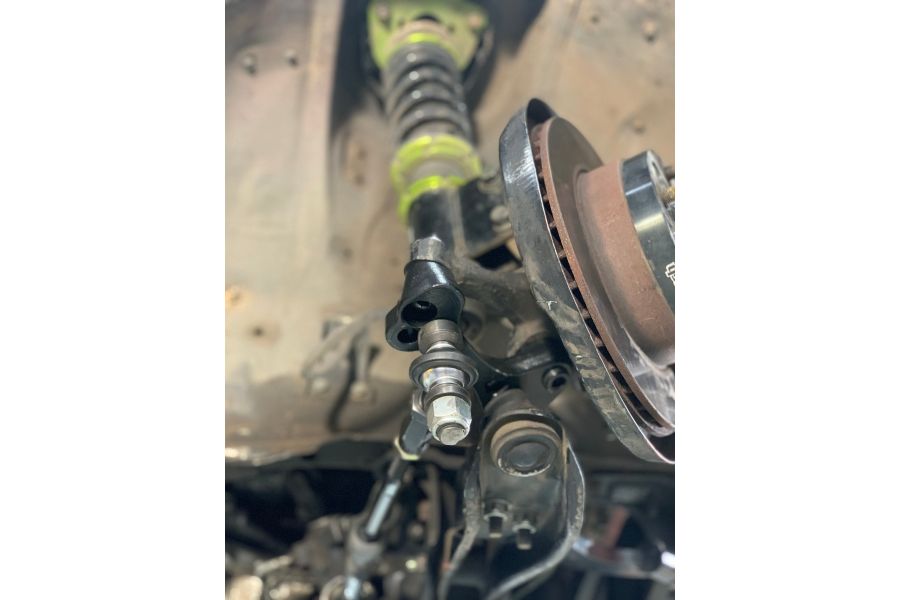

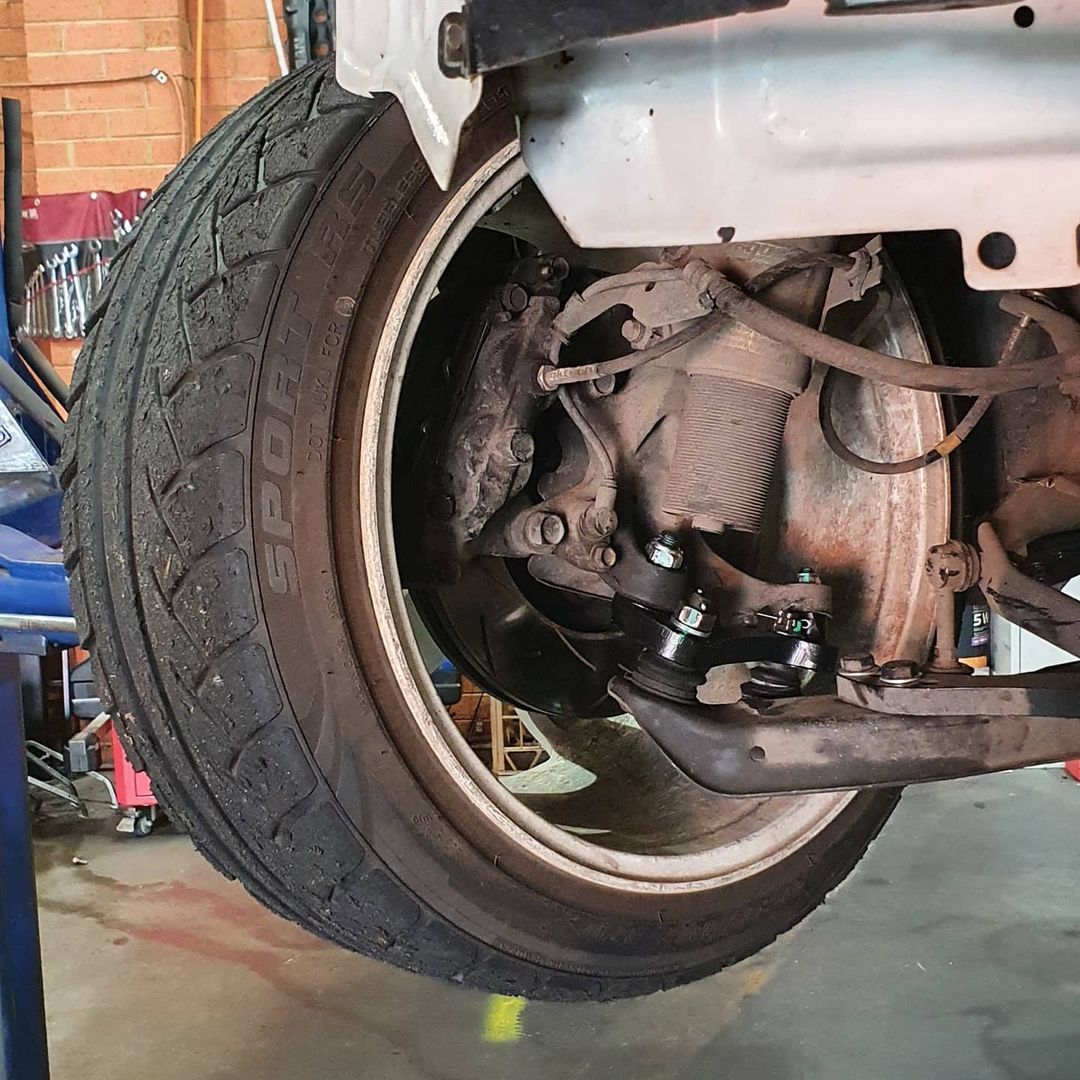

Customer Photos
