GKTECH
5x114.3 Hub Centric Wheel Spacers
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?

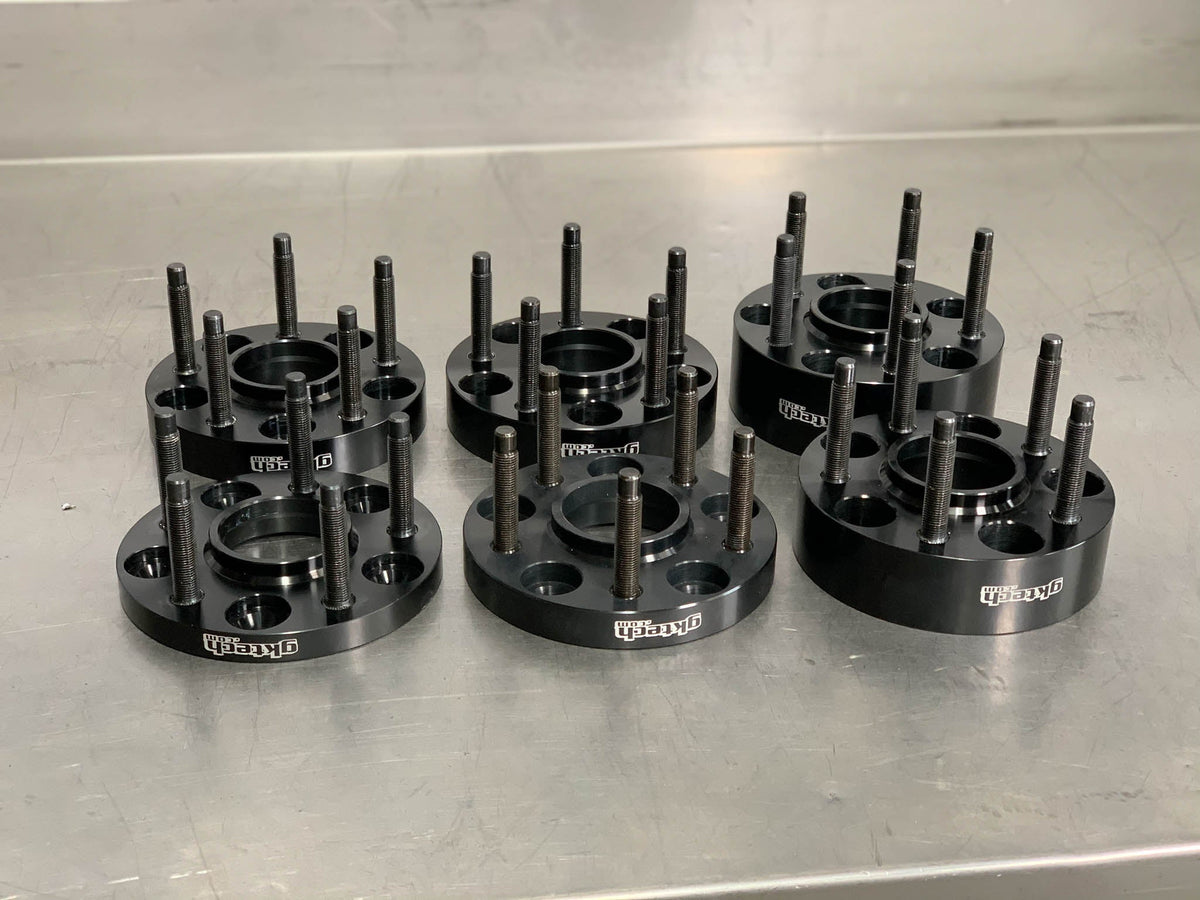

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!
The wheel spacers are hub centric to suit Nissans 66.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 extended studs.
Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
NOTE: Sold as a PAIR
| Sizes (width) | PCD | Centre bore | Stud length | Stud thread |
|---|---|---|---|---|
| 15mm | 5x114.3 | 66.1mm | 60mm | M12 x 1.25 thread |
| 20mm | 5x114.3 | 66.1mm | 60mm | M12 x 1.25 thread |
| 25mm | 5x114.3 | 66.1mm | 60mm | M12 x 1.25 thread |
| 30mm | 5x114.3 | 66.1mm | 60mm | M12 x 1.25 thread |
| 40mm | 5x114.3 | 66.1mm | 60mm | M12 x 1.25 thread |
| 50mm | 5x114.3 | 66.1mm | 60mm | M12 x 1.25 thread |
FAQs
What torque should the nuts be set to?As per the Nissan tech guide we recommend a torque setting of between 72-87 Ft. Lbs. Anything more than this will strip the stud and is DANGEROUS. The setting of 72-87 is as per Nissans specifications.
Are these wheel spacers hub centric?
Yes, these spacers have an internal diameter of 66.1mm to suit a Nissan hub.
Are these wheel spacers strong?
Yes, these wheel spacers are very strong. The spacers themselves are manufactured from T6-6061 Aluminium and we use grade 10.9 fittings. That said, please note that these are for off road use and are not intended for use on public roads.
Do you have wheel spacers to suit other vehicles?
No, we only sell the products listed on our website. If it's not listed on here, then we don't sell it. We don’t do any custom work and only sell off the shelf products so can’t make any changes to what is for sale here. Sorry.
Do you have extended wheel studs available on their own?
Yes, we have extended wheel studs available in packs of 10 in our other listings. Please refer to the other listings for more information.
Do you have 4 to 5 stud wheel adapters?
Yes, we have 20mm hub centric 4 to 5 stud wheel adapters available. Please refer to the other listings for more information.
VEHICLE COMPATIBILITY
Nissan
C33 LaurelC34 Laurel
C35 Laurel
CEFIRO A31
R31 SKYLINE
R32 SKYLINE GTR
R32 SKYLINE GTS-T
R32 SKYLINE GTS4
R33 SKYLINE GTR
R33 SKYLINE GTS
R33 SKYLINE GTS-T
R33 SKYLINE GTS4
R34 SKYLINE GT
R34 SKYLINE GT-T
R34 SKYLINE GTR
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
V35 SKYLINE
V36 SKYLINE
WGNC34 STAGEA
Z32 300ZX
Z33 350Z
Z34 370Z
USER GUIDE(S)
Install Videos
Customer Reviews
great quality have had a few sets and they always handle the abuse!
Bought the spacers and got them delivered pretty quickly and was happy about thay, everything fitted properly but the extended studs from the spacers sticks out past my rims now, I know they do say extended but just wondering what I can do without buying extended lugs or lugs with clear ends thanks. Other than that quality build
Hi Josh, thanks for the feedback. Outside of running extended lugs you can just trim the lug studs down to suit your OEM lug nuts.
Came on time and fits perfectly
Gktech never disappoint always on time and perfect fitment
Went with cheap 15mm spacers off Amazon to test fitment. The cheap hardware of the Amazon quickly rounded on first installation, so once I verified 15mm was what I needed, I came to Gktech to pick up a quality set I could trust on my drift car. I placed the order on Sunday with an event on the following Saturday, and it was shipped out on Monday. The ETA was for the following Monday (after the event) and the package arrived on Thursday prior, just in time for the event! The relief was short lived as I opened the package and saw 15mm slip on spacers instead of the 15mm bolt on spacers that I ordered. Guess I won't have the spacers in time for the event after all.
Update: Gktech overnighted me the correct spacers just in time for the event. Great customer service!
Hi Kevin, sorry to hear of the trouble. I can see you have emailed us and we have requested more information as to what was received. We have strict QC processes in place to ensure this sort of thing doesn't occur so I'm quite confused by what has happened but if you can please reply to our email we will get a resolution for you ASAP.
