Silvia/Skyline 5 Stud Rear Hub
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Choose options

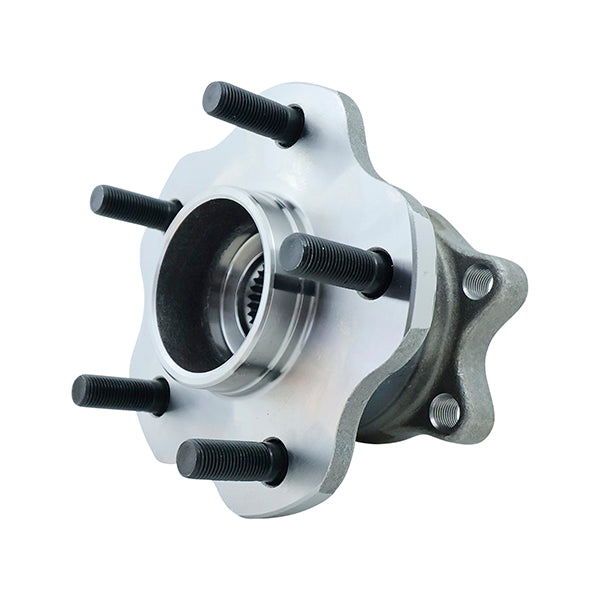

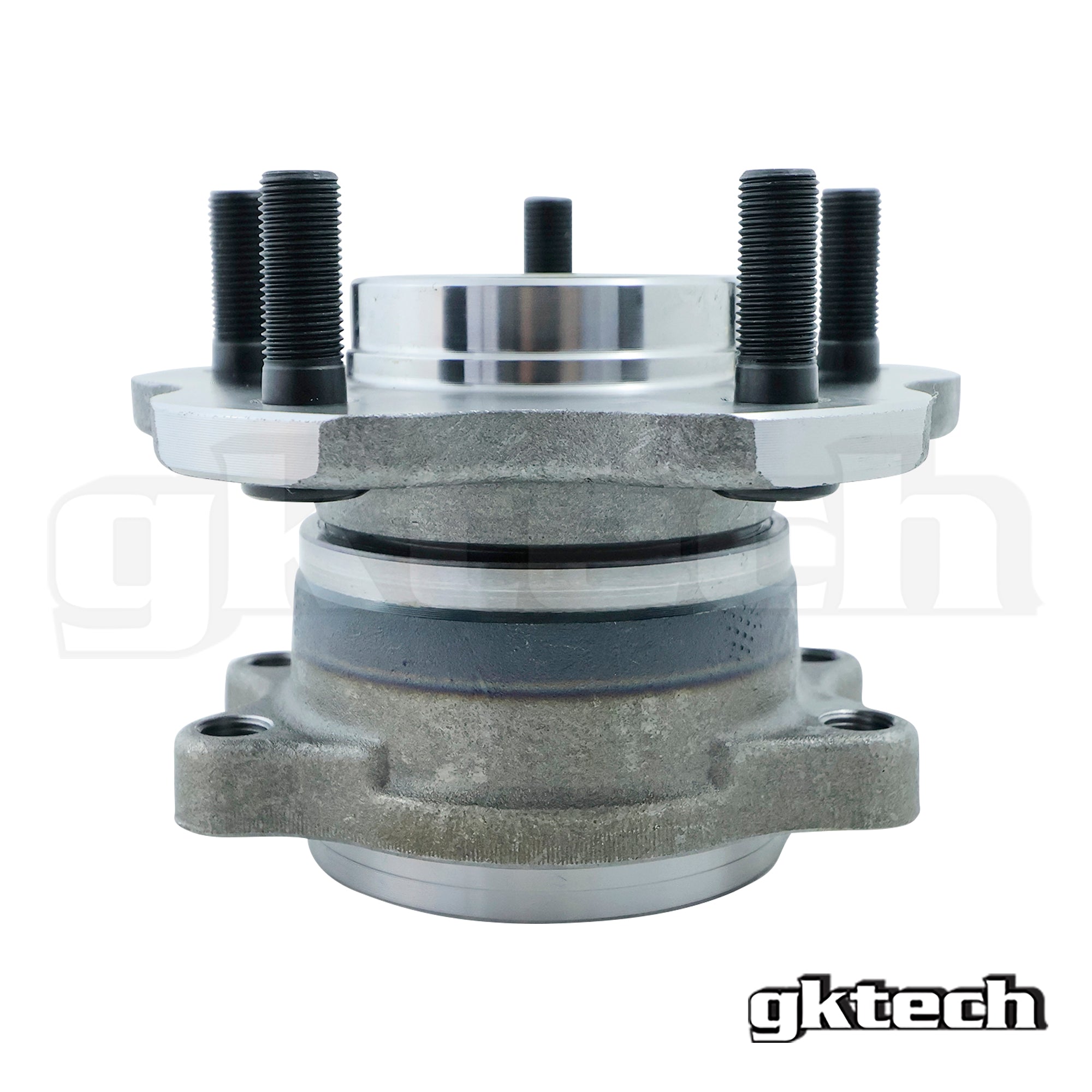

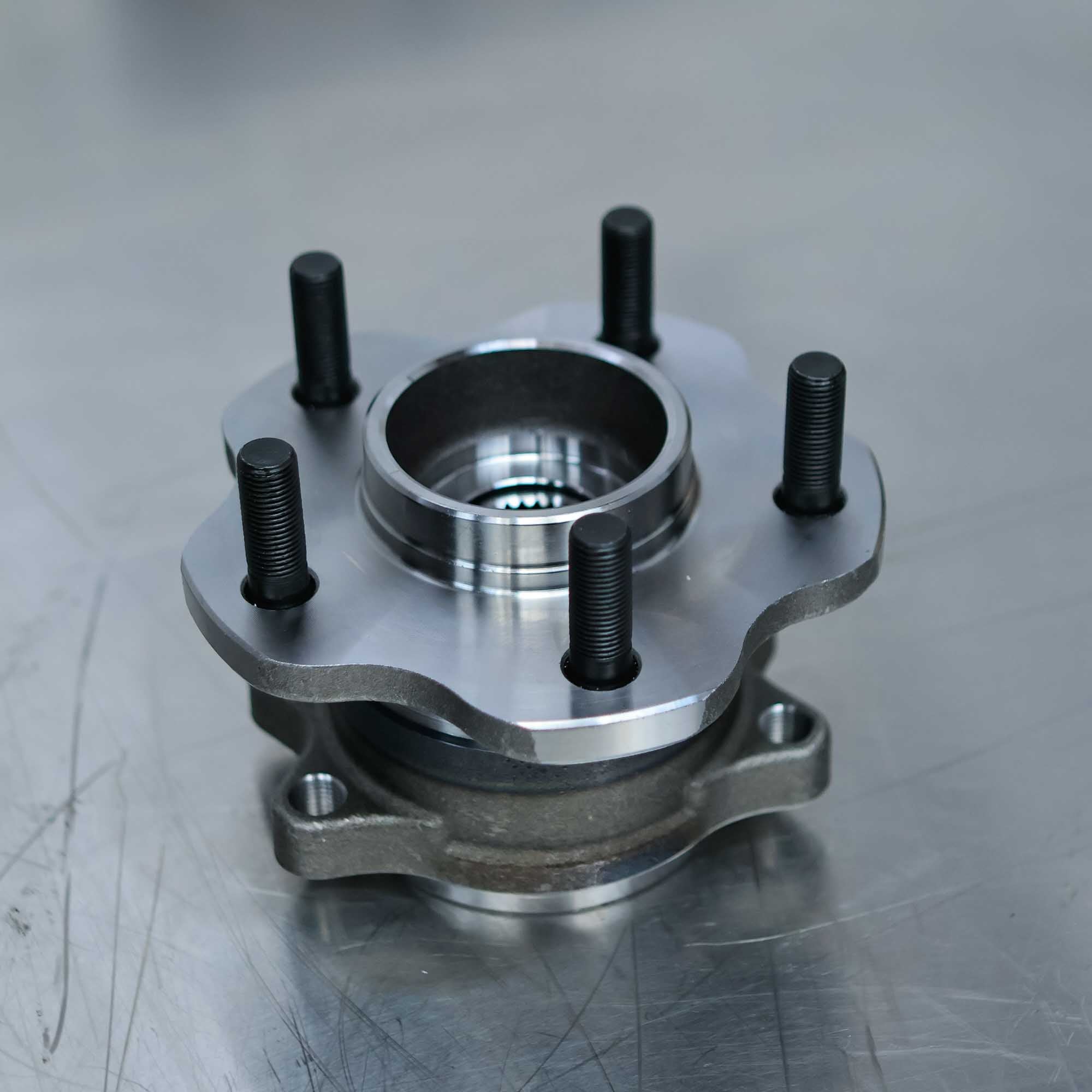

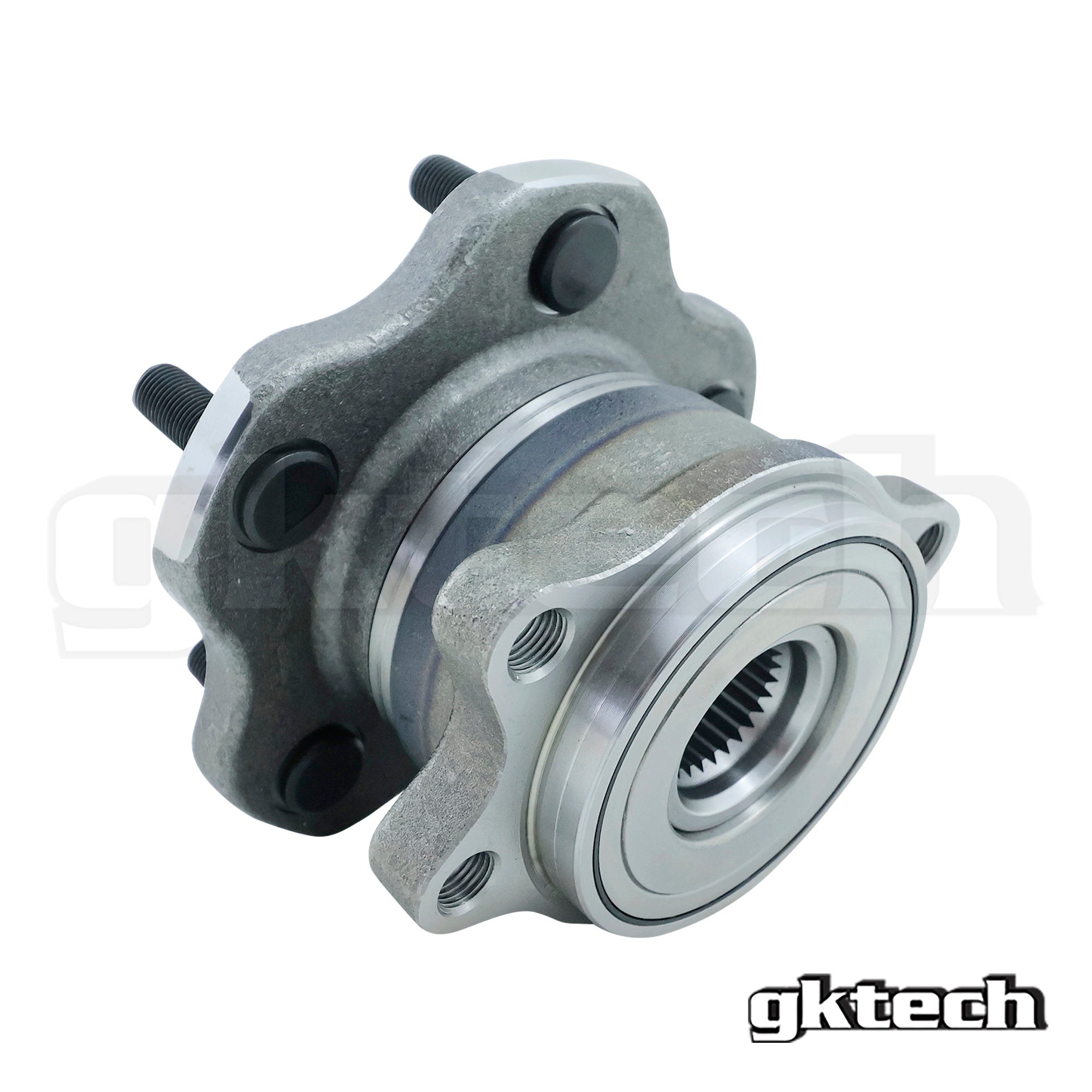

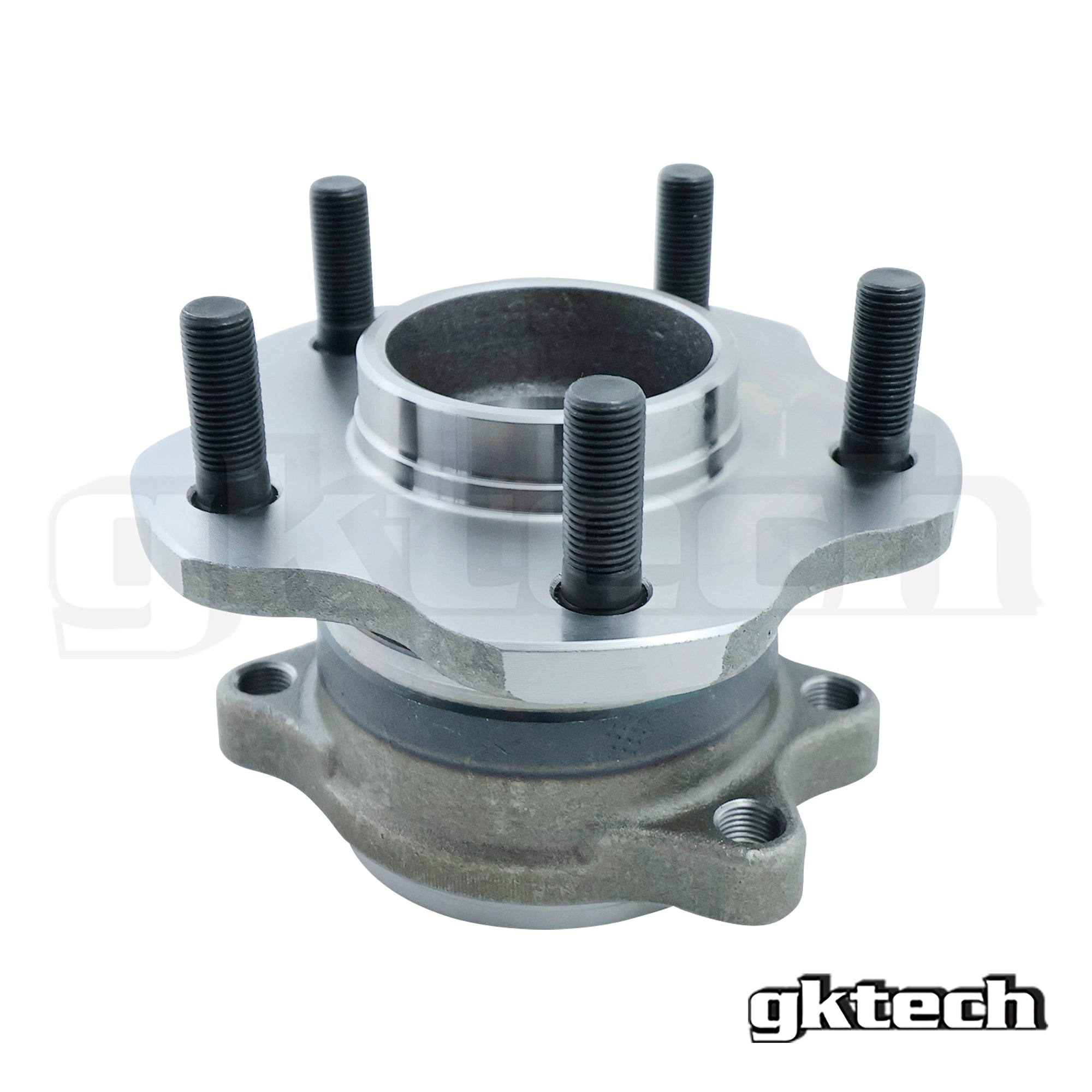

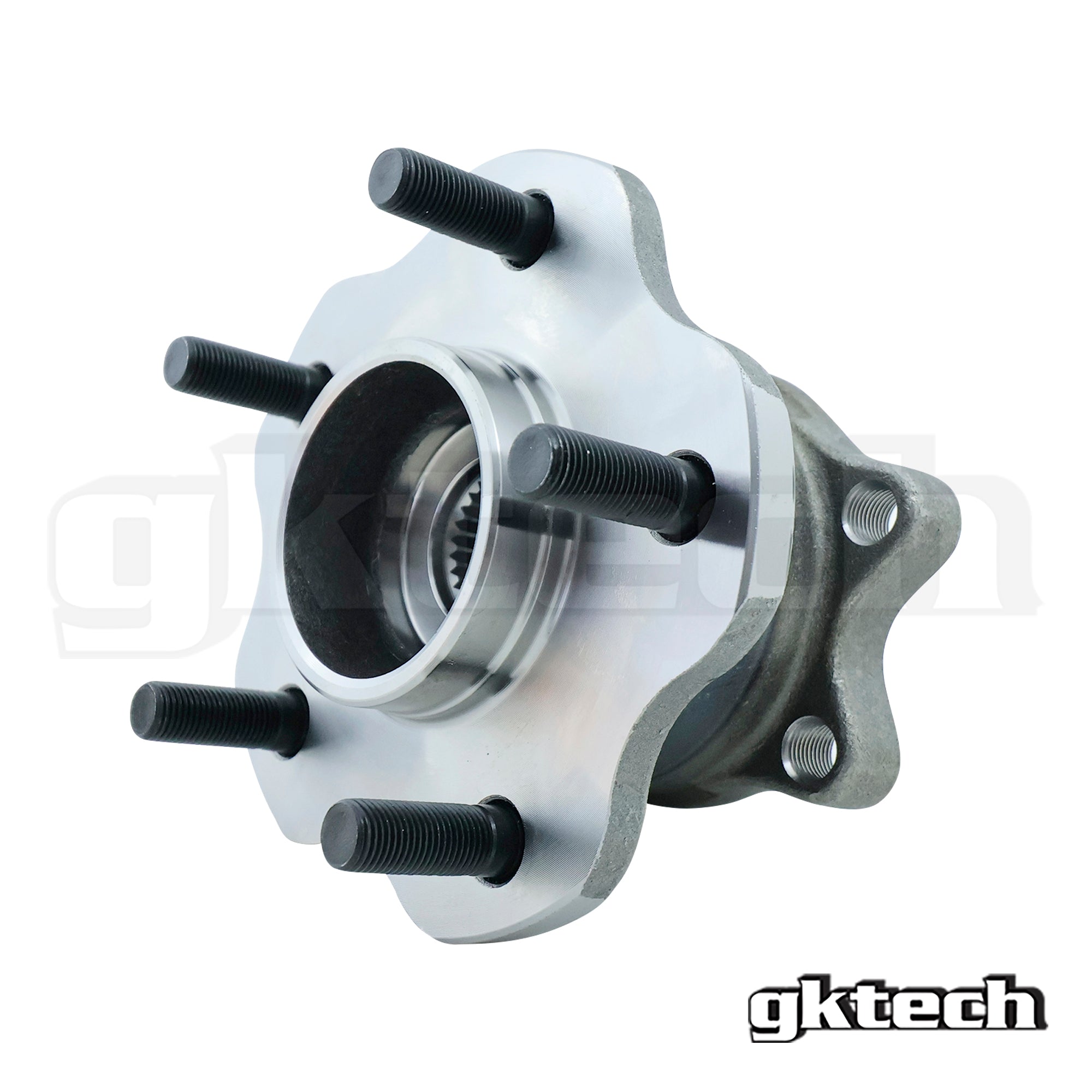

Now available! The GKTECH S14 Silvia / S15 Silvia Complete Rear Hub Assembly, these are an OEM replacement part for the OEM part numbers: 43202-85F00 & 43210-AA100
We made SURE these were ready for motorsport and daily driving needs, with testing including: Cyclical loading through a range of real world load cases including extreme high loads to simulate impacts, up to 800kg of load (equivalent to a total car weight of 3200kg). Over 900hrs of total loaded running time, 70+ days @ 12hrs a day whilst monitored for temperature and vibration throughout the testing and MORE!
Features:

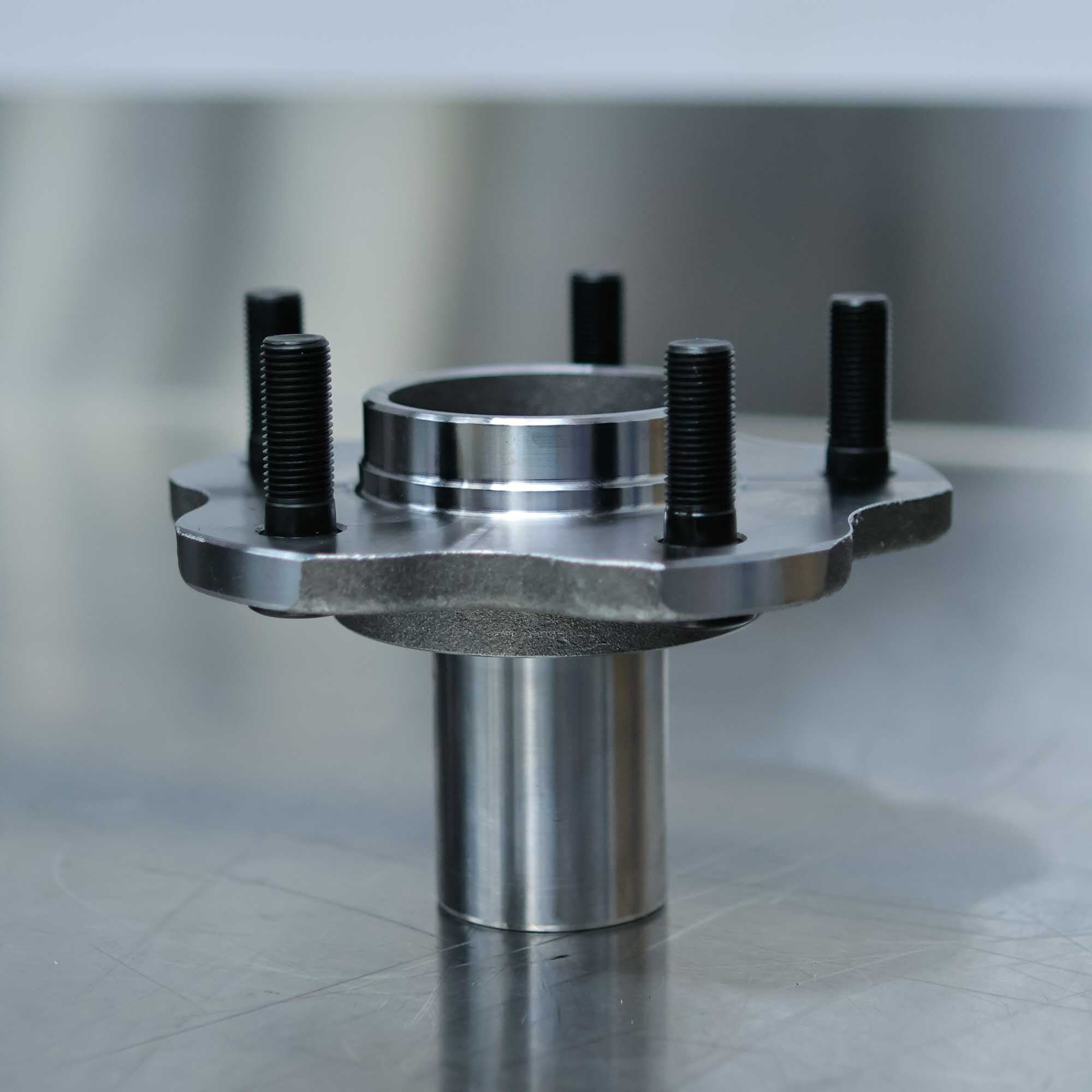

- Heat treated structural steel body and flange
- Grade 10.9 M12x1.25 studs pre installed using OEM ID of 14.3mm
- OEM PCD of 5x114.3
- OE Quality bearings, seals and quality SHELL grease pre installed

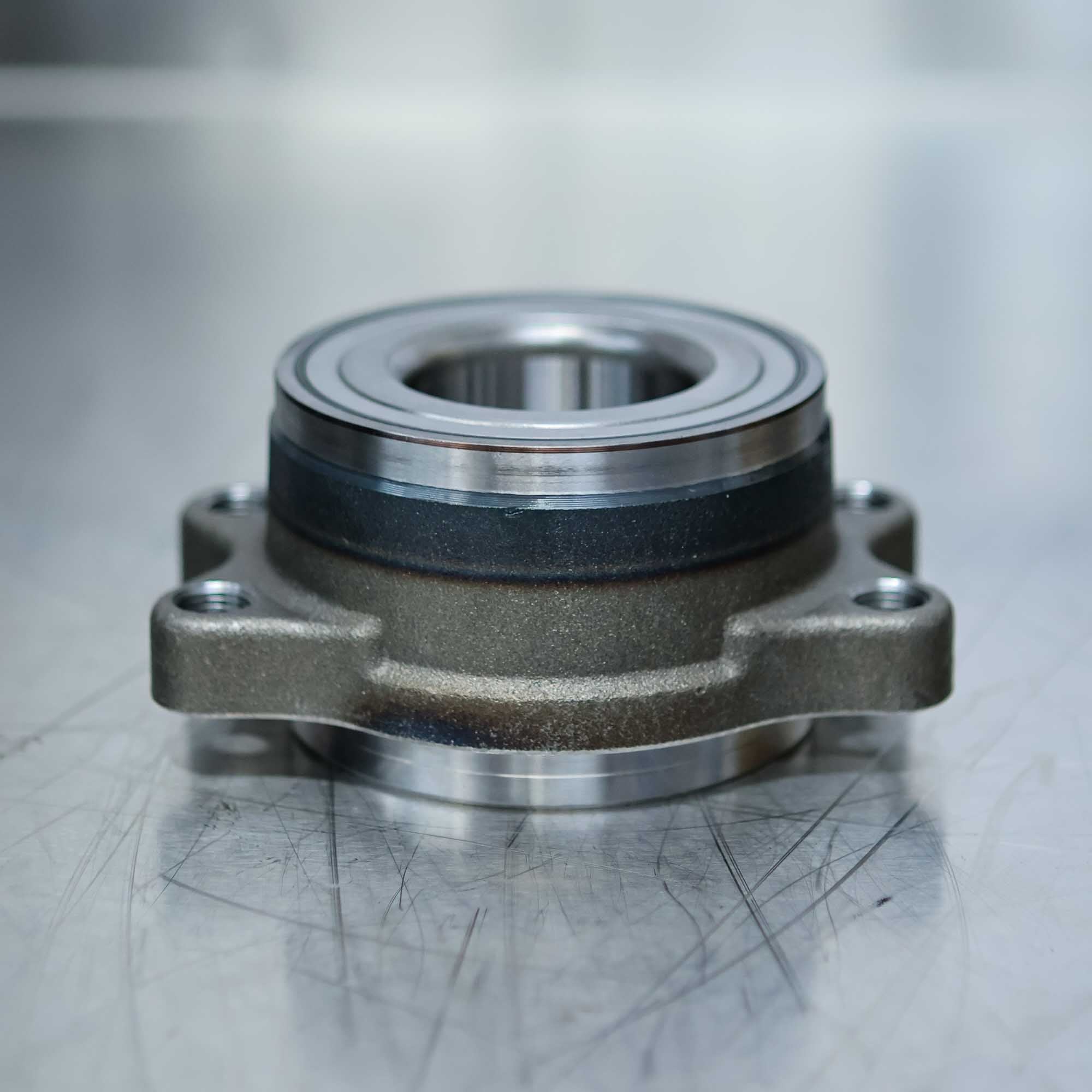

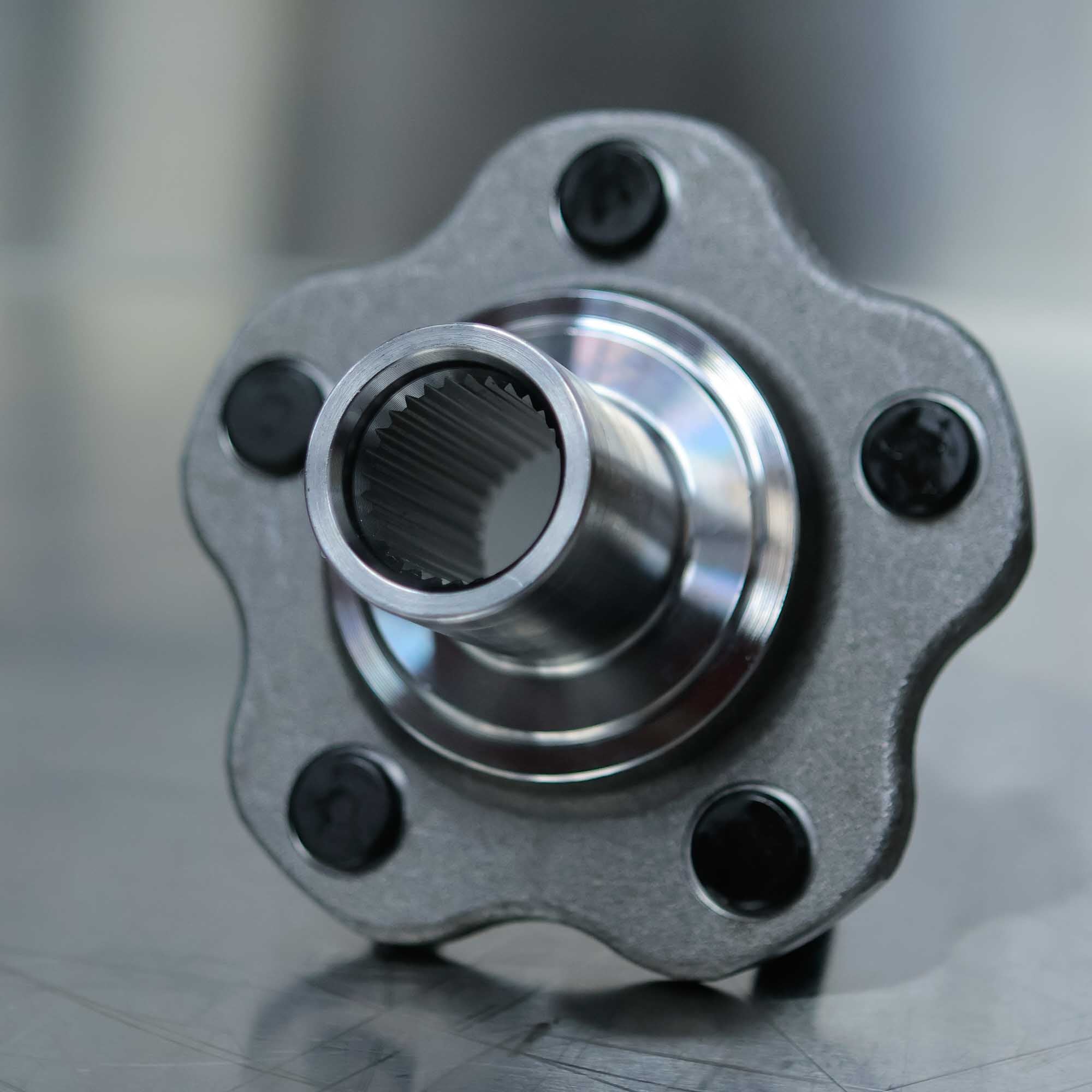

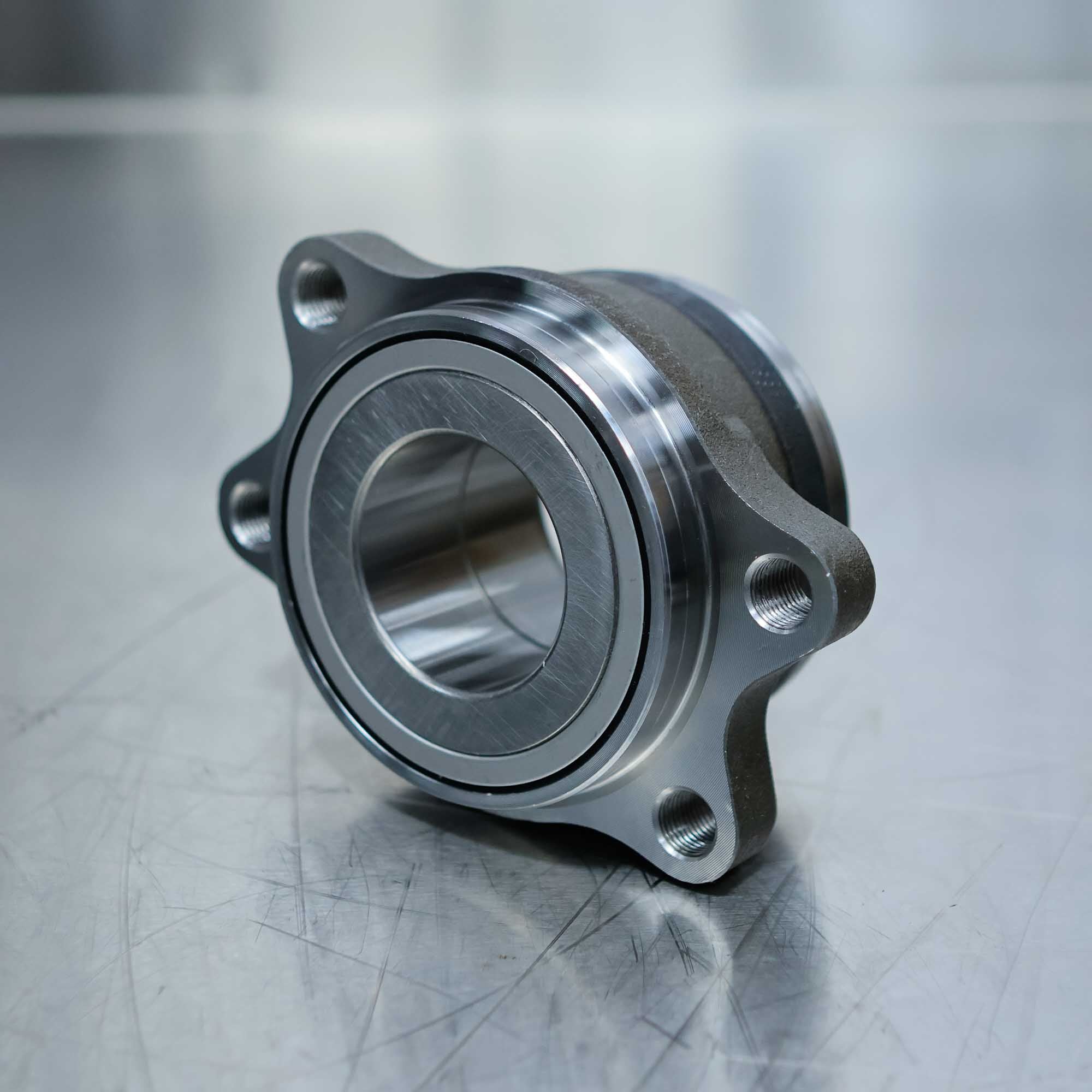

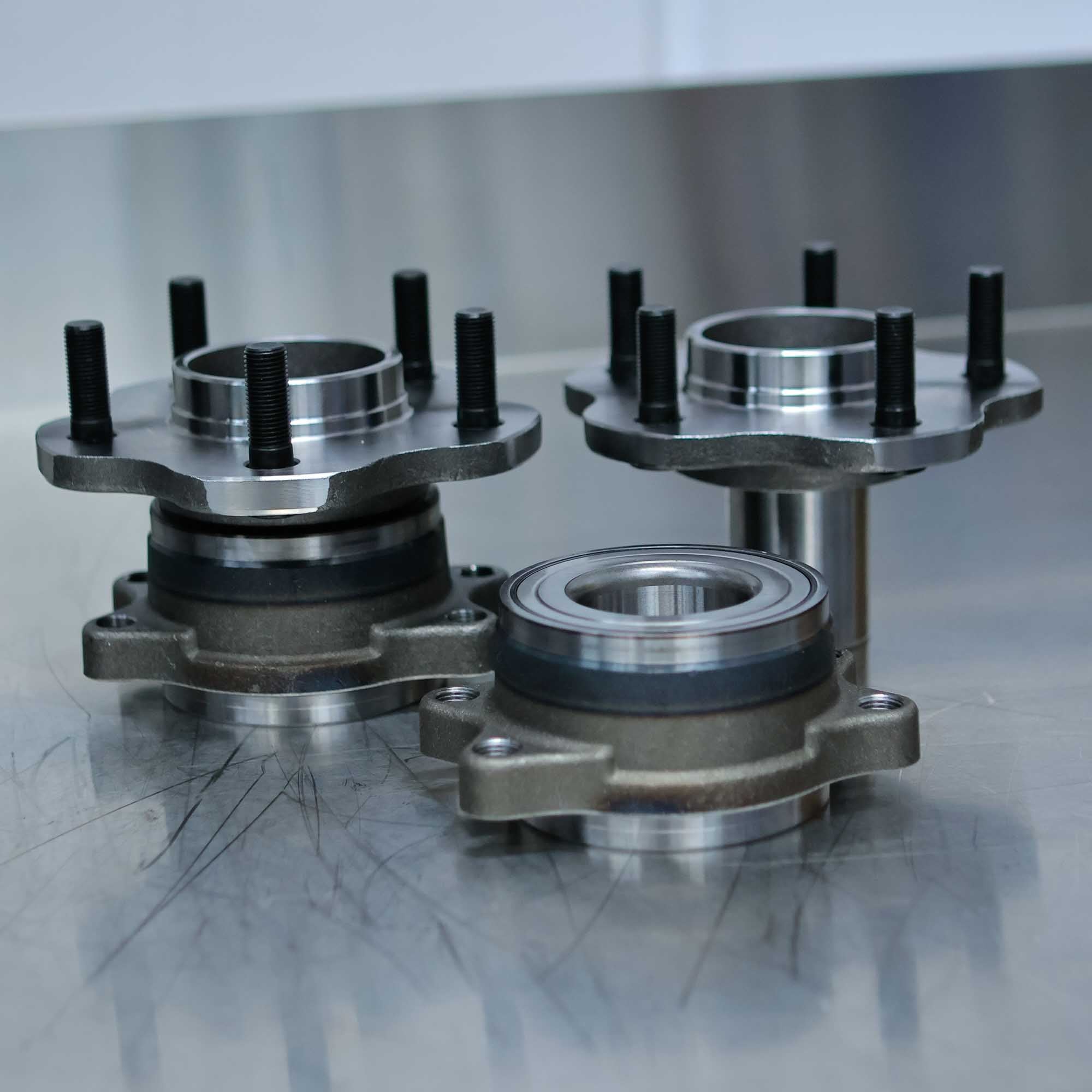

- Fully serviceable with hubs and bearings available separately
Note: SOLD INDIVIDUALLY
Note 2: Will work with 5 stud converted S13 OEM rear knuckle
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed under the vehicle compatibility. If your car is not listed there, then we don't know if it will fit.
What is the hub bore size?
The hubs have the OEM hub size of 66.1mm
My wheel bore size is different, will these still work?
We have hub centric spacers available to suit these hubs here - (link)
I want to convert my S13 to 5 stud, what else do I need?
You will need front hubs, front calipers and 5 stud front/rear rotors
The S13 front conversion hubs can be seen here - https://jp.gktech.com/products/s13-silvia-180sx-4-to-5-stud-front-conversion-hubs-pair?_pos=1&_sid=516a30710&_ss=r
I have an S13 with 5 stud conversion, can I use these hubs?
Yes, these hubs are compatiable with S13 rear knuckles
Can I install this myself? If so how long will installation take?
Yes, provided you have general mechanical knowledge as they are relitively straightforward. Installation time should be around 30 minutes per hub.
Please check your chassis OEM bearing part number for the following chassis
- Nissan C34 Stagea (RS-Four M/T & 260RS may use a different assembly)
- Nissan R34 Skyline GT (Does NOT suit Hicas model)
- Nissan Z32 300ZX (Suits non Turbo ONLY)
VEHICLE COMPATIBILITY
Nissan
C33 LaurelC34 Laurel
C35 Laurel
CEFIRO A31
R32 SKYLINE GTS-T
R33 SKYLINE GTS
R33 SKYLINE GTS-T
R34 SKYLINE GT
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
Z32 300ZX
