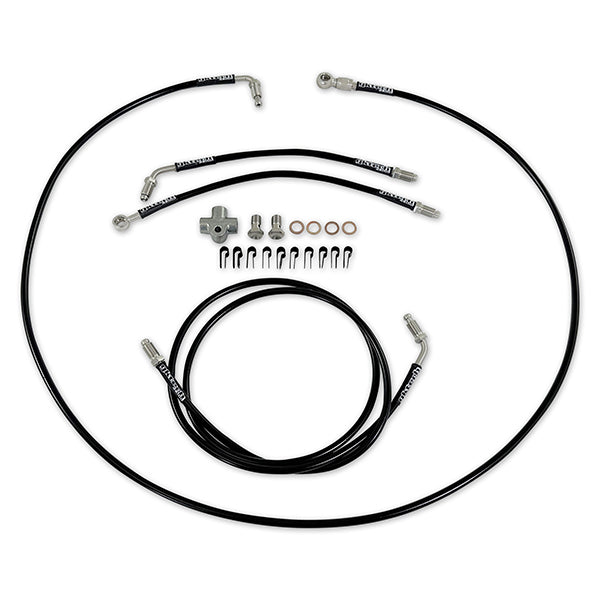

ご注文商品の準備ができ次第、まとめて発送いたします。他の商品が再入荷する前に商品が必要な場合は、別々にご注文いただくことをお勧めします。We present the GKTECH ABS Delete line kit for the Toyota JZX series – an easy, bolt-on solution to completely remove the ABS system from your vehicle.
Our kit offers a super easy installation process: simply remove the standard lines and replace them with our kit. The total installation time is around 45 minutes.
The GKTECH braided brake lines are built with stainless steel fittings and hoses that feature a Teflon inner tube wrapped in stainless steel braid and protected by a PVC outer coating. These brake lines have been independently tested to comply with FMVSS106 standards for brake hoses, making them ADR approved in Australia, as indicated on the brake line assemblies.
The FMVSS106 testing procedure includes the following tests:
- 370 lbs pull test
- 35-hour whip test
- 7000 psi burst test
- Temperature tests from -45°C to 146°C
- 24-hour salt corrosion resistance test
Benefits of our kit include:
- Direct replacement of the standard hard lines
- A cleaner look for the engine bay
- Designed for race cars only, with no permanent modifications required
NOTE: This ABS delete kit only suits rear brakes with individual hardlines for each side. Please double check that your vehicle has two brake lines running to the rear before ordering.
よくある質問
Will this fit my car?We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
What's the advantage of using the GKTech ABS delete kit?
OEM non-ABS hardware is becoming harder to find. This kit allows you to neatly delete the ABS while also using our UK made stainless steel fittings, Teflon inner tube and PVC outer ADR/DOT and TUV spec. braided brake lines. You can also mount the lines to suit your application.
What modifications are required, are these hard to fit?
No modifications are required, simply just remove and refit.
Is there anything else needed for installation?
You will need to re-bleed your brakes, so you will need tools and brake fluid, in terms of the kit, it will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, the kit is easy to install and should take around 30 minutes. Simply remove your old lines, remove your ABS module, then put these lines in their place. You can run the lines along the K-Frame or the firewall. Then tighten the lines referencing the OEM torque specs. You will then need to top up the brake fluid and bleed the brake system. However, being the brake system we recommend only a trained professional to install this product.
Are there any negatives to removing the ABS lines/module?
Removing ABS for a track driven car is a must and is strongly suggested. ABS modules are known to kick in under hard braking or in the wet unexpectedly.
Will my ABS light show an error?
Yep, it sure will. Simply remove the bulb from the dash cluster and you'll be none the wiser, problem solved.
Is it illegal to remove the ABS module on a street driven car?
We're not 100% sure but as with most mods, it probably is. If it is illegal then we suggest for race track use only and ABS is use full for everyday driving scenarios.
車両の互換性
Toyota
JZX100JZX90
